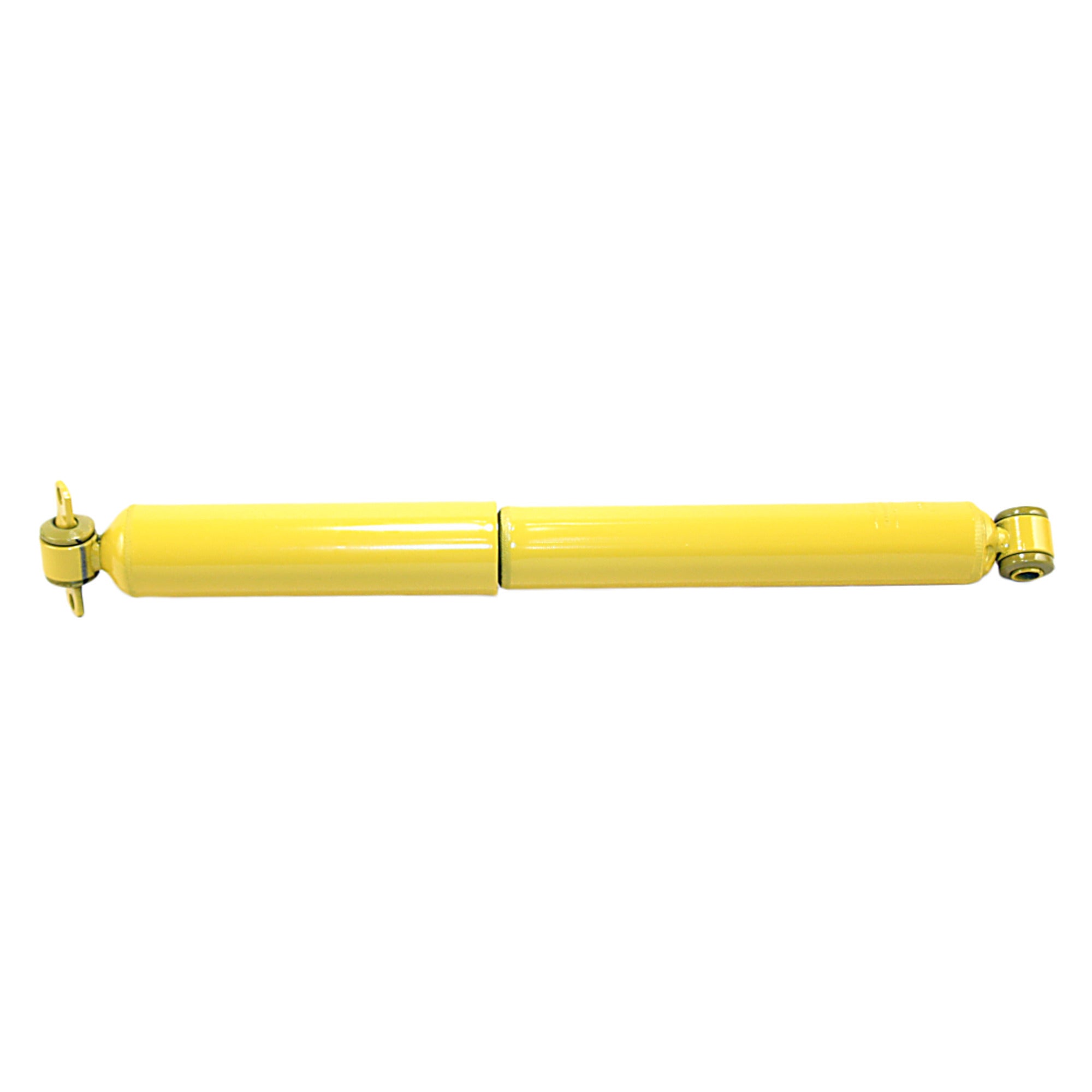

Monroe Gas-Magnum Shock 34756

Upgrade your Chevrolet C35, C3500, GMC C3500, C3500HD, Winnebago Minnie, Spirit with Monroe Gas-Magnum Shock 34756, specifically designed to provide exceptional control and durability for midsize and full-size trucks and vans. These shocks are engineered to deliver a firm yet comfortable ride, making them ideal for vehicles that work hard and require consistent performance under heavy loads.

Features of the 34756:

• Heavy-Duty Construction: Built with a nitrocarburized rod and sintered iron piston, these shocks are designed to last longer by resisting wear and maintaining integrity under stress.
• Superior Durability: The self-lubricating fluid seal minimizes friction against the piston rod, reducing wear and extending the shock's lifespan.
• Increased Oil Capacity: Featuring a larger bore and a 2-inch reserve tube, these shocks hold more oil, allowing for greater damping capacity and a smoother ride.
• Nitrogen Gas-Charged Design: Helps maintain optimal tire-to-road contact, reducing aeration and shock fade for consistent ride quality and improved handling.
• All-Weather Performance: Equipped with OE all-weather fluid containing special modifiers to handle extreme temperatures, ensuring smooth operation regardless of the conditions.

Benefits of the 34756:

• Longer Service Life: Built to withstand the demands of heavy-duty use, these shocks offer a longer service life thanks to their robust construction and superior materials.
• Improved Ride and Handling: The full-displaced valving system provides precise control over compression cycles, delivering a more controlled ride and better handling characteristics.
• Greater Comfort: Designed to provide firm control without sacrificing comfort, ensuring a smoother ride for your vehicle even under heavy loads.
• Reliability in All Conditions: The nitrogen gas charge and all-weather fluid deliver consistent performance, making these shocks suitable for various driving environments.

Specifications of the 34756:

• Compressed Length (IN): 14
• Compressed Length (MM): 355.6
• Dust Shield Included: Yes
• Dust Shield Material : Metal
• Extended Length (IN): 22.75
• Extended Length (MM): 577.9
• Gas Charged: Yes
• Hydraulic Lockout: No
• Includes Bump Stop: No
• Internal Rebound Bumper: Yes
• Lower Mount Code: LS47
• Lower Mount Type: Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
• Part Description: Shock Absorber
• Parts Pack(s): None
• Shock Absorber Body End Measuring Point: Center of Loop
• Shock Absorber Rod End Measuring Point: Center of Cross Pin
• Travel Length (IN): 8.75
• Travel Length (MM): 222.3
• Upper Mount Code: XP5
• Upper Mount Type: Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center)

Equip your vehicle with the Monroe Gas-Magnum Shock 34756 to experience enhanced control, comfort, and durability. Perfect for trucks and vans that handle demanding jobs, these shocks provide the reliability and performance needed to tackle any road.

For more information or to find the perfect fit for your vehicle, contact us at Shockwarehouse. We're here to help you get the most out of your suspension system.
