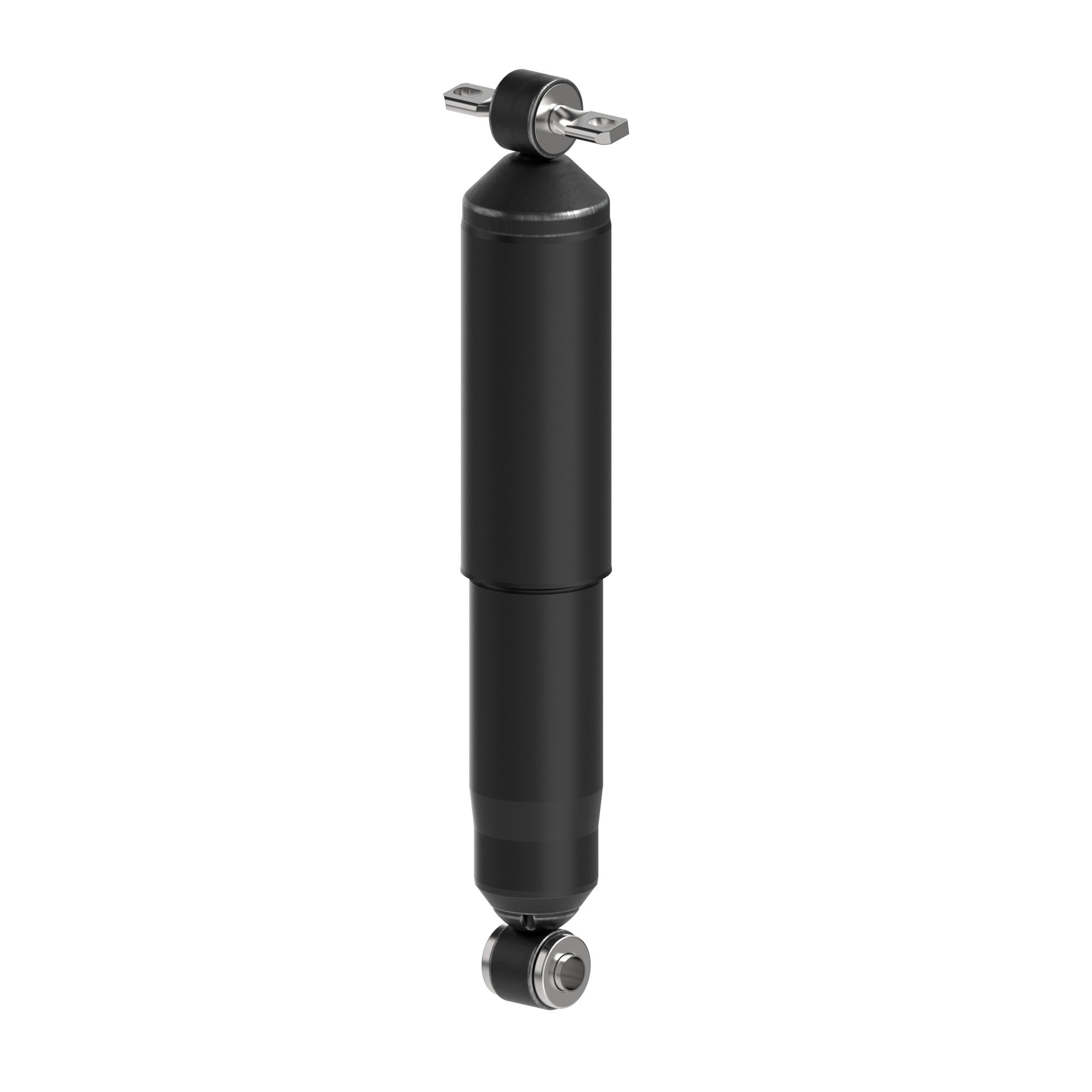

Monroe 34763 Rear Gas-Magnum Shock Absorber Cadillac Escalade, Chevrolet, GMC

Monroe 34763 Rear Gas-Magnum Shock Absorber Cadillac Escalade, Chevrolet, GMC

Solves: Bouncing, Porposing, Rough Ride

Regular price $41.37

Monroe Gas-Magnum Shocks 34763 for Cadillac, Chevrolet, Econoline, GMC, Roadtrek, WinnebagoMonroe Gas-Magnum shocks 34763 are heavy-duty gas-charged shocks built specifically...

Vendor: Monroe

Sku: 34763

Shipping information

- Ships within 1-2 business days.

Manufacturer Warranty

Secure payment

Fast Shipping

👀 customers are viewing this product

🔥 30 sold in last 18 hours

Guarantee safe checkout

Monroe 34763 Rear Gas-Magnum Shock Absorber Cadillac Escalade, Chevrolet, GMC

$41.37

Description Fitment Specs

Monroe Gas-Magnum Shocks 34763 for Cadillac, Chevrolet, Econoline, GMC, Roadtrek, Winnebago

Monroe Gas-Magnum shocks 34763 are heavy-duty gas-charged shocks built specifically for the demands of larger vehicles including motorhomes, trucks, and commercial applications. The Gas-Magnum line is Monroe's workhorse heavy-duty offering, delivering a firm, capable damping profile with the durability to handle high load ratings and extended service intervals without sacrificing ride quality on the highway.

For motorhome owners who need a reliable, heavy-duty shock with a proven track record in demanding applications, the Monroe Gas-Magnum is a trusted solution.

Features of the Monroe Gas-Magnum 34763:

Gas-Charged Design: Pressurized gas charge resists fluid aeration and fade for consistent damping performance across all conditions
Heavy-Duty Construction: Built to handle the load and stress demands of larger motorhome and commercial vehicle applications
Precision Valving: Tuned for the weight range and dynamics of larger vehicles for a balance of ride comfort and control
Direct-Fit Design: Engineered for specific applications for a straightforward, no-modification installation
Corrosion-Resistant Finish: Durable coating protects against rust and road debris in all weather conditions

Benefits of the Monroe Gas-Magnum 34763:

Consistent Heavy-Duty Performance: Gas-charged damping holds up under the load and stress demands of motorhome use without fading or degrading
Improved Ride Stability: Reduces body roll, sway, and bounce for a more controlled and predictable driving experience
Reliable Long-Term Durability: Heavy-duty construction delivers consistent performance over high mileage and demanding conditions
Easy Installation: Direct-fit design makes replacement straightforward without special tools or modifications
Proven Track Record: A widely trusted solution in demanding motorhome and commercial vehicle applications

The Monroe Gas-Magnum is the right choice for motorhome owners who need a heavy-duty, gas-charged shock with the durability and load capacity to handle their vehicle's demands mile after mile.

Specifications of the 34763

Active or Passive Suspension: Passive
Adjustable Compression: No
Adjustable Rebound: No
Adjustable Ride Height: No
Compressed Length (IN): 14.625
Compressed Length (MM): 371.5
Dust Shield Included: Yes
Dust Shield Material : Metal
Extended Length (IN): 23.875
Extended Length (MM): 606.4
Gas Charged: Yes
Grade Type: Premium
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Rebound Bumper: Yes
Lower Mount Code: LS47
Lower Mount Type: Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Lower Mount Type: Loop (Eyelet) Bushing and Sleeve
Mounting Hardware Included: No
Part Description: Shock Absorber
Parts Pack(s): None
Shock Absorber Body End Measuring Point: Center of Loop
Shock Absorber Rod End Measuring Point: Center of Cross Pin
Travel Length (IN): 9.25
Travel Length (MM): 235
Upper Mount Code: XP7
Upper Mount Type: Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)

Specifications of the 34763

Active or Passive Suspension: Passive
Adjustable Compression: No
Adjustable Rebound: No
Adjustable Ride Height: No
Compressed Length (IN): 14.625
Compressed Length (MM): 371.5
Dust Shield Included: Yes
Dust Shield Material : Metal
Extended Length (IN): 23.875
Extended Length (MM): 606.4
Gas Charged: Yes
Grade Type: Premium
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Rebound Bumper: Yes
Lower Mount Code: LS47
Lower Mount Type: Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Lower Mount Type: Loop (Eyelet) Bushing and Sleeve
Mounting Hardware Included: No
Part Description: Shock Absorber
Parts Pack(s): None
Shock Absorber Body End Measuring Point: Center of Loop
Shock Absorber Rod End Measuring Point: Center of Cross Pin
Travel Length (IN): 9.25
Travel Length (MM): 235
Upper Mount Code: XP7
Upper Mount Type: Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)

Cross Reference Part Numbers:
This part replaces

ACDelco 5601107

ACDelco 5601108

ACDelco 5601106

ACDelco 560675

Autopart International 2701711348

Autopart International 2701424145

Bilstein 24221948

Bulldog HD HD12140884

Chevrolet 84301663

Chevrolet 20956377

Chevrolet 84020665

Chevrolet 23296353

Chevrolet 25856173

Chevrolet 84020664

Chevrolet 84301664

Chevrolet 84301665

Duralast TS3431712B

FCS 342526

FCS 342524

FCS 342468

FCS 342525

Gabriel G63638

Gabriel 58638

Gabriel G63897

GMC 84020664

GMC 84020665

GMC 20956377

GMC 84301665

GMC 25856173

GMC 84301664

GMC 23296353

GMC 84301663

KYB 344262

KYB 3450017

KYB 344263

KYB 344273

KYB 349009

MasterPro Shocks and Struts GM120

Monroe Shocks & Struts 32265

Monroe Shocks & Struts 37086

Monroe Shocks & Struts 911086

NAPA Proformer SH81667

NAPA Shocks 76763

OSC S349009

PM Auto PM6001136

Sachs 30780

Sensen 12140213

TRQ SBA72160

TRW JGT4170S

Unity 251220

FAQs

Have a question ? We are here to help.

Is the shipping free?

We offer free shipping on orders over $150. Our shipping is fast due to our warehouse location near the main FedEx hub.

When will I receive my item?

When we have received your order, you will automatically receive an e-mail confirming your order. Orders made before 2 PM CST will be picked, packed and shipped the same day. Delivery time is usually 2-4 working days with FedEx.
