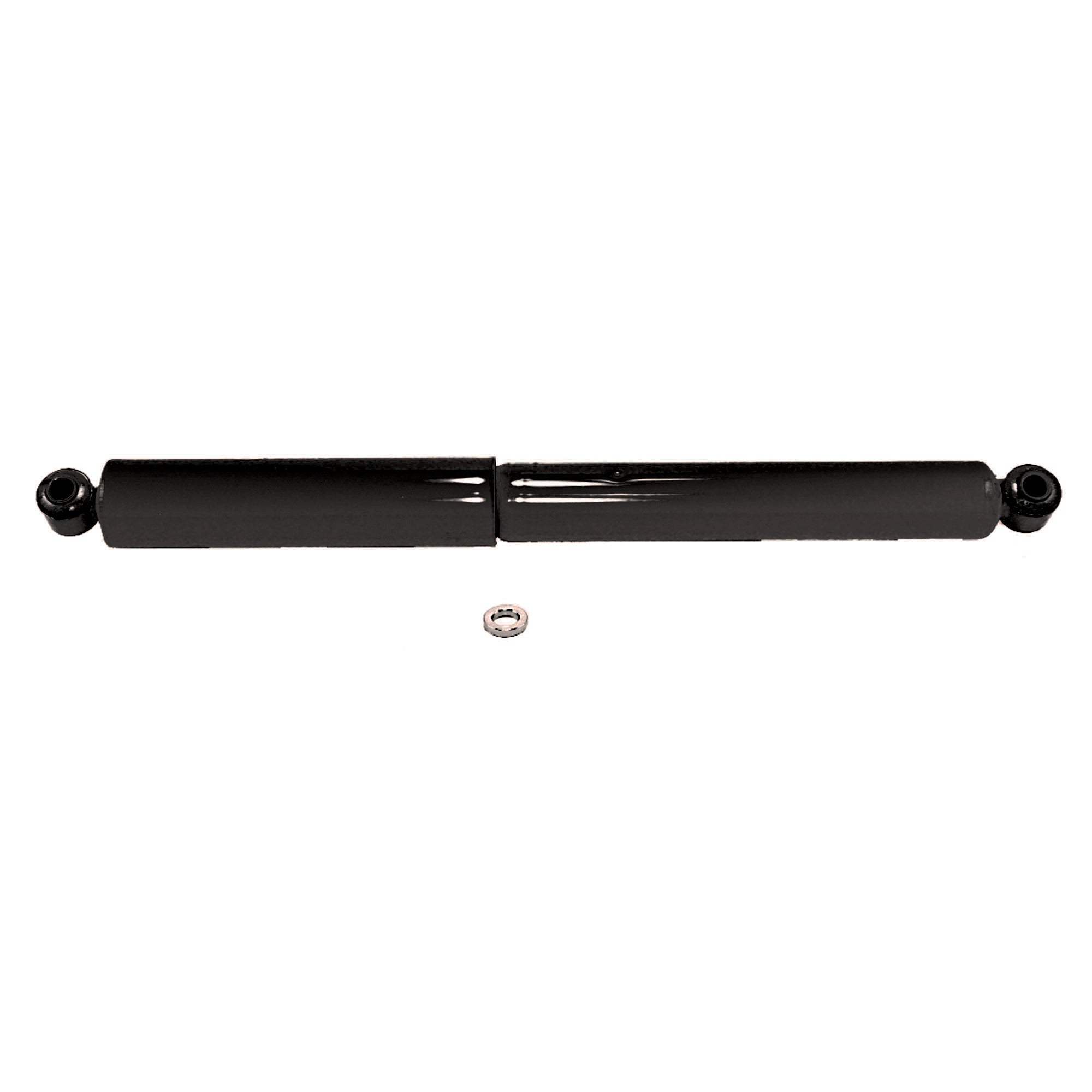

Monroe 557001 Front Gas-Magnum RV Shock Absorber Ford F53, F59
Solves: Bouncing, Porposing, Rough Ride
- Regular price $70.76
-
-%
Monroe Magnum RV Shocks 557001 Monroe Magnum RV shocks 557001 are designed to improve ride control, reduce bounce, and stabilize...
Vendor: Monroe
Sku: 557001
Shipping information
- Ships within 1-2 business days.
Manufacturer Warranty
Secure payment
Fast Shipping
👀
customers are viewing this product
🔥 30 sold in last 18 hours
Guarantee safe checkout
Monroe 557001 Front Gas-Magnum RV Shock Absorber Ford F53, F59
$70.76
Monroe Magnum RV Shocks 557001
Monroe Magnum RV shocks 557001 are designed to improve ride control, reduce bounce, and stabilize motorhomes and RV platforms during travel. Built with a gas-charged design and full displacement valving, these shocks help manage suspension movement more effectively, especially on larger vehicles that experience sway, wander, or trailer feedback.
Whether you're cruising on the highway or dealing with uneven road surfaces, Magnum RV shocks help deliver a smoother, more controlled ride.
Features of the Monroe Magnum RV Shock 557001:
- Gas-Charged Design: Helps maintain consistent damping and reduces foaming for reliable performance
- Full Displacement Valving: Improves control over suspension movement and reduces excessive bounce
- Hydraulic Lockout Feature: Helps prevent overextension of the shock during extreme suspension travel
- Durable Construction: Built to handle the weight and demands of RV and motorhome applications
- Dust Shield Included: Helps protect internal components from debris and environmental exposure
Benefits of the Monroe Magnum RV Shock 557001:
- Reduced Bounce and Wander: Helps keep the vehicle more stable on highways and uneven roads
- Improved Ride Comfort: Smooths out harsh road inputs and vibration
- Better Control Under Load: Maintains stability when the vehicle is fully loaded
- Reduced Trailer Feedback: Helps minimize surge and movement transferred through the chassis
- Enhanced Driving Confidence: Provides more predictable handling and improved overall control
Monroe Magnum RV shocks are a reliable solution for RV owners looking to improve ride quality, reduce instability, and maintain better control during long-distance travel.
Specifications of the 557001
- Active or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Rebound: No
- Adjustable Ride Height: No
- Compressed Length (IN): 17.375
- Compressed Length (MM): 441.3
- Dust Shield Included: Yes
- Dust Shield Material : Metal
- Extended Length (IN): 29.125
- Extended Length (MM): 739.8
- Gas Charged: Yes
- Grade Type: Premium
- Hydraulic Lockout: No
- Includes Bump Stop: No
- Internal Rebound Bumper: No
- Lower Mount Code: LS54
- Lower Mount Type: Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
- Lower Mount Type: Loop (Eyelet) Bushing and Sleeve
- Mounting Hardware Included: Yes
- Part Description: Shock Absorber
- Parts Pack(s): P01232
- Shock Absorber Body End Measuring Point: Center of Loop
- Shock Absorber Rod End Measuring Point: Center of Loop
- Travel Length (IN): 11.75
- Travel Length (MM): 298.5
- Upper Mount Code: LS54
- Upper Mount Type: Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Specifications of the 557001
- Active or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Rebound: No
- Adjustable Ride Height: No
- Compressed Length (IN): 17.375
- Compressed Length (MM): 441.3
- Dust Shield Included: Yes
- Dust Shield Material : Metal
- Extended Length (IN): 29.125
- Extended Length (MM): 739.8
- Gas Charged: Yes
- Grade Type: Premium
- Hydraulic Lockout: No
- Includes Bump Stop: No
- Internal Rebound Bumper: No
- Lower Mount Code: LS54
- Lower Mount Type: Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
- Lower Mount Type: Loop (Eyelet) Bushing and Sleeve
- Mounting Hardware Included: Yes
- Part Description: Shock Absorber
- Parts Pack(s): P01232
- Shock Absorber Body End Measuring Point: Center of Loop
- Shock Absorber Rod End Measuring Point: Center of Loop
- Travel Length (IN): 11.75
- Travel Length (MM): 298.5
- Upper Mount Code: LS54
- Upper Mount Type: Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Cross Reference Part Numbers:
This part replaces
Bilstein 24234511
Bilstein 24187015
Bulldog HD HD12150093
FCS F347243
Ford LU9Z18124A
Ford LU9418045EA
Ford LU9Z18124B
Ford 8U9Z18124A
Ford BU9Z18124B
Ford LU9418045DA
Ford HU9Z18124A
Ford 9U9Z18124A
Ford BU9Z18124A
Ford CU9Z18124A
Ford DU9Z18124A
Ford DU9Z18124B
Ford HU9Z18124C
Ford HU9Z18124B
Ford 9U9Z18124B
Ford Genuine Parts BU9Z18124A
Ford Genuine Parts CU9Z18124A
Ford Genuine Parts HU9Z18124A
Ford Genuine Parts HU9Z18124B
Ford Genuine Parts HU9Z18124C
Ford Genuine Parts BU9Z18124B
Ford Genuine Parts 8U9Z18124A
Ford Genuine Parts 9U9Z18124A
Ford Genuine Parts 9U9Z18124B
Gabriel 85013
Koni 88051018
Koni 881558
KYB KG6415
LKQ 5106942
Meritor M85013
Meritor M89414
Monroe Shocks & Struts 34768
Motorcraft AT620
Motorcraft ASH1229
Motorcraft ASH1022
Motorcraft ASH1228
Motorcraft ASH25822
Motorcraft ASH25823
Motorcraft ASH294
Motorcraft AT766
Motorcraft ASH1205
Motorcraft ASH24634
Motorcraft ASH1161
NAPA Shocks 557001
Sachs 410057
Sachs 316491
Spartan B461594
Spartan 2502B46
