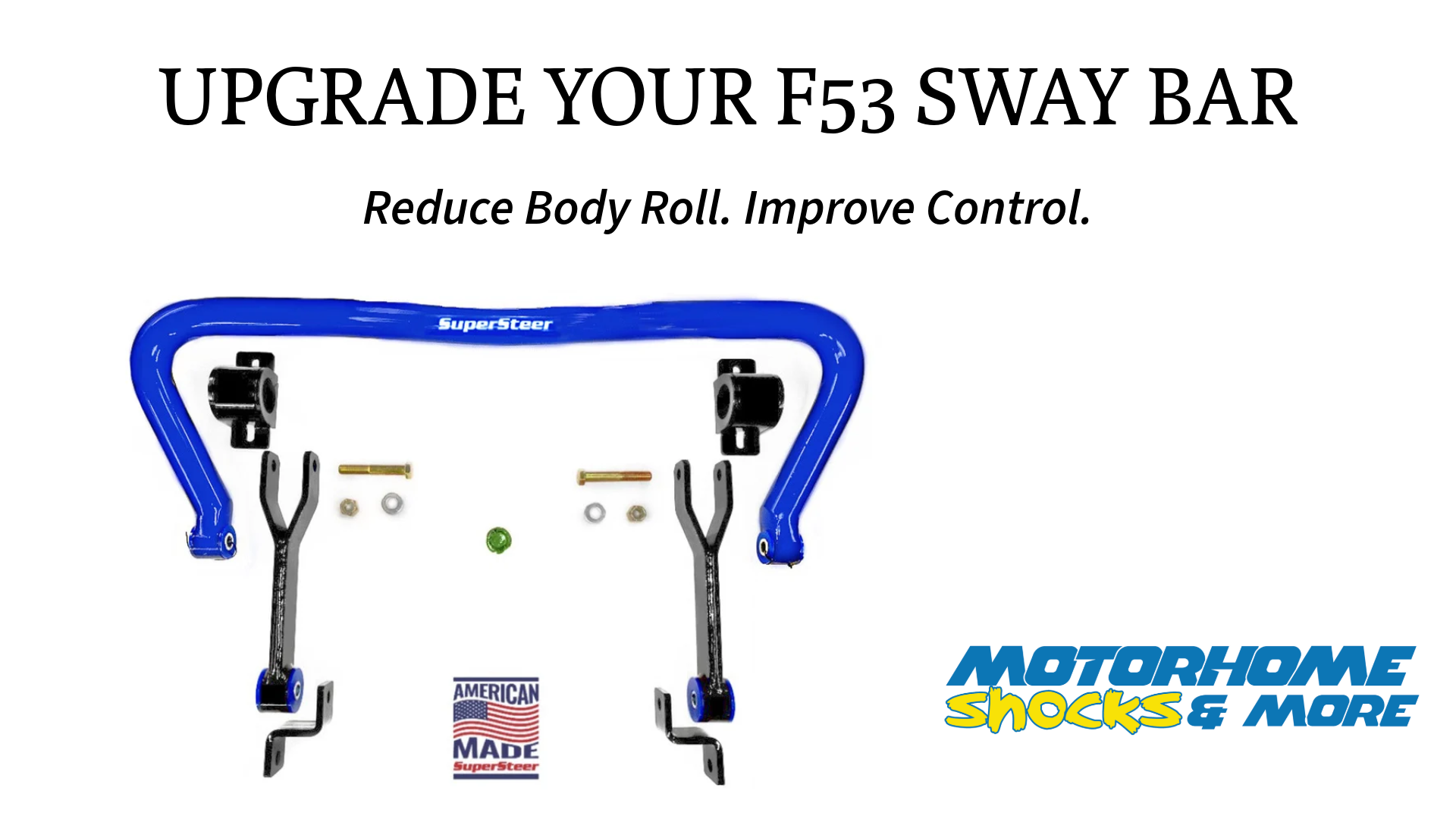

Reduce Excessive Body Roll by Choosing the Right F53 Upgrade

If your Ford F53 motorhome leans through freeway ramps, rocks during lane changes, or feels top-heavy when passing trucks push air against the coach, you may be researching a Ford F53 sway bar upgrade. That’s a logical direction because sway bars address one of the most common complaints in a tall gas Class A motorhome: excessive side-to-side body movement.

The important word is address. A sway bar doesn’t hold the coach up, repair a worn shock, correct tire pressure, or make crosswinds disappear. It connects the left and right sides of the suspension and resists unequal movement. This resistance helps the motorhome’s body remain flatter when weight transfers from one side to the other.

The Ford F53 platform supports a wide range of motorhome bodies and weight ratings. Chassis year, engine generation, GVWR, wheelbase, body length, rear overhang, factory sway-bar design, and existing upgrades can all affect which part is correct.

This guide explains how an F53 sway bar works, how to separate body roll from bounce or steering wander, what to inspect before buying, and how to choose a fitment-matched upgrade. For a broader overview, read the Class A Motorhome Suspension Guide.

What Does an F53 Sway Bar Do?

A sway bar, also called an anti-sway bar or stabilizer bar, is a torsion spring that connects the left and right sides of an axle’s suspension. When one side compresses more than the other, the bar twists and resists the difference.

This resistance helps reduce body roll during:

• Curves and freeway ramps
• Lane changes
• Uneven driveway entrances
• Crosswinds and sudden gusts
• Passing-truck turbulence
• Off-camber campsites and access roads

A sway bar performs a different job than a shock absorber. Shocks control how quickly the suspension compresses and rebounds in response to road inputs. A sway bar resists the difference between the left and right sides when the body begins to lean.

These components can complement each other, but they aren’t interchangeable. A larger or more effective sway bar may reduce the initial lean. Healthy shocks help control the rocking and movement that follow.

An F53 motorhome gives its sway-control system plenty to manage. The finished coach can be tall, heavy, and wide, with tanks, slides, cabinets, passengers, and storage positioned above the frame. Wind creates side pressure against the body. A freeway ramp transfers weight across the axles. An angled driveway may load one side of the suspension before the other.

The goal isn’t to eliminate all body movement. A large motorhome will always respond to wind, road angle, and weight transfer. The goal is a flatter, quicker, and more predictable response that requires less correction from the driver.

Is Body Roll Really the Main Problem?

Motorhome owners often use the word “sway” to describe several different movements. Before choosing a Ford F53 sway bar upgrade, identify exactly when the problem happens and how the coach moves.

Body Roll

Body roll is the side-to-side leaning you feel when entering a curve, changing lanes, crossing an uneven driveway, or driving through a gust. The coach may take a noticeable set toward one side and then rock as it recovers.

If this leaning motion is the strongest complaint, the sway-control system deserves close attention.

Bounce and Porpoising

Bounce is repeated vertical movement after a bump. Porpoising is front-to-rear pitching after a dip, bridge transition, or rolling section of pavement. These symptoms point first toward shocks, springs, ride height, tire pressure, and loading.

A sway bar may influence how the coach feels overall, but it isn’t the primary solution for repeated vertical or front-to-rear motion.

Steering Wander

Wander is the need for constant small steering corrections to keep the motorhome centered. Tire pressure, alignment, steering linkage, lateral axle movement, and steering stabilization may be more relevant than a sway bar.

Rear Axle Shift or Tail Wag

Tail wag is a rear-steer sensation in which the back of the coach seems to move sideways and push the rest of the motorhome. A trac bar limits lateral axle movement on compatible applications. A sway bar may reduce body roll, but it isn’t a substitute for lateral axle control.

An F53 motorhome can experience more than one problem at the same time. If the coach leans and then continues rocking after a turn or bump, it may need both improved roll control and better damping. The Complete Guide to RV and Motorhome Suspension explains how these systems work together.

Inspect the Factory Sway-Control System First

A Ford F53 sway bar upgrade should begin with an inspection of the factory equipment. A damaged, disconnected, or badly worn component can make the existing system perform far below its intended level.

Ask a qualified technician to inspect:

• Sway-bar bushings for cracking, compression, or deterioration
• End links for looseness, damage, or bent hardware
• Mounting brackets and frame attachment points
• Fasteners for looseness or evidence of movement
• Clearance around the axle, exhaust, suspension, and motorhome body
• The bar itself is for damage, unusual contact, or incorrect positioning
• Whether the factory bar is present and correctly installed

Rubber bushings can deteriorate over time, while mounting hardware can loosen or wear out. Replacing a damaged bushing, link, or bracket may restore some of the factory system’s performance. Complete necessary repairs before assuming the motorhome needs an additional or larger bar.

If the coach already has an aftermarket bar, identify its brand, part number, axle position, and installation type before ordering any additional components. Don’t assume an unfamiliar bar is original equipment.

Check the Rest of the F53 Chassis

The sway bars don’t operate independently of the rest of the suspension. Worn shocks can allow the coach to continue rocking after the sway bar limits the initial lean. Sagging springs, incorrect ride height, overloaded axles, and uneven cargo placement can also make body roll feel worse.

Weigh the Motorhome in Travel Trim

Weigh the F53 as it normally travels. Include passengers, fuel, water as appropriate, supplies, cargo, towing equipment, and hitch-mounted accessories. Compare the measured axle weights with the chassis and tire ratings.

A sway bar won’t increase GVWR or GAWR. If an axle is overloaded, correct the loading problem before using suspension upgrades to change how the coach feels.

Set Tire Pressure From Load Information

Incorrect tire pressure can change ride quality, steering response, and stability. Use the tire manufacturer’s load-and-inflation guidance with actual axle or individual wheel-position weights whenever possible.

Don’t choose operating pressure based only on appearance or the maximum pressure shown on the tire sidewall.

Inspect the Shocks and Springs

Check the shocks for active leakage, damaged bodies, worn bushings, broken mounts, and inadequate control. Inspect the springs, bump stops, and related hardware for damage or reduced suspension travel.

If bouncing or porpoising is a major part of the complaint, browse the Motorhome Shocks and Struts collection after confirming the chassis application.

Check Alignment and Steering Parts

Have the tires, alignment, steering linkage, and front suspension inspected if the motorhome wanders, pulls, or requires constant steering corrections. A sway bar or steering stabilizer shouldn’t be used to hide a worn or misadjusted component.

If the steering wheel remains busy after the chassis is mechanically sound, review the motorhome steering stabilizer options.

What Can a Ford F53 Sway Bar Upgrade Improve?

A properly matched and correctly installed sway bar may help an F53 motorhome:

• Lean less through curves and freeway ramps
• Feel flatter during lane changes
• Rock less when one side crosses an uneven surface
• Respond more predictably in crosswinds
• Feel less dramatic around passing trucks
• Reduce side-to-side movement felt by passengers
• Lower the driver’s need to react to body motion

These are potential handling improvements, not guarantees. The final result depends on the coach’s weight distribution, suspension condition, tire setup, existing equipment, and the amount of body roll allowed by the original system.

A sway bar can improve roll control while leaving a separate handling problem unchanged. For example, the coach may lean less but continue bouncing because the shocks are worn. It may also remain difficult to steer if alignment or lateral axle movement is the main issue.

Replacement Sway Bar Versus Auxiliary Sway Bar

One of the most important F53 fitment questions is whether the upgrade replaces the original sway bar or serves as an auxiliary bar alongside it.



A replacement bar may use a different diameter, material, shape, bushings, or mounting hardware to change the roll-control response. An auxiliary bar adds roll resistance while the original bar remains in service.

Neither arrangement is automatically better. The correct design depends on model year, engine, GVWR, axle position, factory equipment, and the manufacturer’s instructions.

Don’t assume an auxiliary kit can be added to every F53. Likewise, don’t assume a replacement bar will work when the factory geometry, axle, shock mounts, or chassis brackets differ.

Front Versus Rear F53 Sway Bar Upgrades

Front and rear sway bars affect different parts of the motorhome. Some owners need one axle addressed first, while others experience enough body roll at both ends to justify a complete front-and-rear plan.

Consider Starting With the Front When:

• The coach leans noticeably as steering input begins
• The front end takes a slow or dramatic set in curves
• The driver feels body movement begin at the steering axle
• The factory front bar, bushings, or links show wear
• Freeway ramps create excessive front-end lean

Consider Starting With the Rear When:

• Passengers feel the house portion lean and rock most strongly
• A long rear overhang magnifies side-to-side movement
• Rear cargo and tanks contribute to a pronounced rear-heavy feeling
• The rear bar, links, or bushings show wear
• The application uses an auxiliary rear bar for additional roll control

Consider Both Axles When:

• The entire coach feels top-heavy in turns
• Body roll remains after one axle has been addressed
• Crosswinds create movement throughout the coach
• Truck turbulence creates a nose-to-tail reaction
• Shocks, loading, and tire pressure are correct, but roll remains excessive

This symptom-first approach is more useful than choosing a bar because another owner has the same engine or motorhome brand. Two F53 motorhomes can use different wheelbases, body lengths, axle ratings, rear overhangs, and suspension parts.

Why Ford F53 Sway Bar Fitment Requires More Than the Chassis Name

“Ford F53” is a useful starting point, but it isn’t a complete fitment record. Sway-bar applications can be separated by model year, engine, GVWR, axle position, coach configuration, shock-mount layout, and whether the installation replaces or supplements the factory bar.

The Roadmaster Ford anti-sway bar fitment chart demonstrates how Ford motorhome applications are divided by these details. Always compare that information with the current product page and installation instructions for the specific kit.

Before ordering, gather:

• Ford F53 chassis model year
• Engine generation
• Gross Vehicle Weight Rating, or GVWR
• Front and rear Gross Axle Weight Ratings
• Coach length and body configuration
• The axle position you want to address
• Current sway-bar diameter and mounting layout, when requested
• Existing aftermarket sway bars, trac bars, steering parts, or load-support products
• Clearance information around the bar, brackets, shocks, and exhaust

Use GVWR when a product page requests GVWR. Don’t substitute the Gross Combined Weight Rating, which includes the coach and allowable combined towing weight.

A motorhome badge or floorplan name may not provide enough information for fitment. If any detail is unclear, use the Motorhome Shocks & More contact page and provide the complete chassis information.

Pairing Sway Bars With Other F53 Suspension Upgrades

A sway bar limits unequal left-to-right suspension movement. Other F53 upgrades address different types of movement.

• Shocks: Control compression, rebound, repeated bouncing, and porpoising.
• Trac bars: Limit unwanted lateral axle movement and rear-steer sensations.
• Steering stabilizers: Help control unwanted steering movement and reaction.
• Helper springs: Provide supplemental support on compatible applications.
• Alignment and steering repairs: Correct mechanical conditions that accessories can’t repair.

If the motorhome leans less after a sway bar upgrade but still rocks after bumps or driveway transitions, inspect the shocks. If the rear shifts sideways, evaluate a chassis-specific trac bar. If the steering wheel requires constant correction, verify tire pressure, alignment, and steering condition before considering a stabilizer.

If the rear sags or bottoms out, inspect the springs, loaded axle weight, ride height, cargo placement, and available suspension travel.

These upgrades can work together because they address different movements. The right package isn’t the stiffest collection of parts. It’s the combination that matches the symptoms your coach actually shows.

For additional F53-specific guidance, read Best Suspension Upgrades for the Ford F53 Chassis.

Installation and Aftercare Considerations

Follow the sway-bar manufacturer’s instructions and use the specified hardware, bushings, lubricant, and torque procedures. The installation should include a complete clearance check through the suspension’s expected range of movement.

The sway bar and its hardware must not contact:

• The axle or differential housing
• The exhaust system
• The driveshaft
• Steering components
• Brake hoses or lines
• Shock absorbers
• The motorhome body or nearby chassis equipment

Sway-bar installation can involve heavy parts and limited access beneath a motorhome. Use a qualified technician with appropriately rated lifting and support equipment. Don’t rely on a jack alone while working beneath the coach.

After installation, recheck fasteners according to the manufacturer’s instructions. Watch for new noises, contact marks, loose hardware, or unusual steering behavior.

A reduction in body roll may reveal a separate problem that was previously masked by larger movement. If the coach still handles poorly, diagnose the remaining symptom instead of repeatedly tightening hardware or adding unrelated parts.

What Should a Successful F53 Sway Bar Upgrade Feel Like?

You should notice a flatter and more controlled response during curves, freeway ramps, and lane changes. The motorhome may feel less tippy when one side crosses an uneven entrance. Passengers may brace less, and the driver may have fewer body movements to manage when wind or traffic creates a side load.

The F53 will remain a tall, heavy Class A chassis. A sway bar won’t eliminate road crown, crosswinds, or the need to drive within the coach’s limits. It should make the motorhome’s response more predictable.

If the dominant sensation remains bounce, porpoising, steering wander, sagging, or tail wag, choose the suspension component that matches that movement.

Choose Your Ford F53 Sway Bar Upgrade by Fitment and Symptoms

A Ford F53 sway bar upgrade is most relevant when the main complaint is excessive side-to-side body roll. It may help the coach remain flatter through turns, lane changes, uneven entrances, passing-truck turbulence, and crosswinds.

However, a sway bar won’t replace shocks for repeated bouncing, a trac bar for lateral axle movement, a steering stabilizer for unwanted steering reaction, or suspension support for sagging and bottoming out.

Begin with a complete inspection, actual travel weight, correct tire pressure, proper ride height, and the condition of the factory sway-bar hardware. Then verify the exact F53 model year, engine, GVWR, axle position, and whether the design is a replacement or auxiliary before ordering.

When you’re ready to plan the next step, review the Class A Motorhome Suspension Guide, explore the motorhome sway and trac bar information, or contact Motorhome Shocks & More with your chassis details and a description of when the leaning occurs. A targeted upgrade plan can make your next F53 trip feel calmer, without expecting a single component to solve every handling problem.
