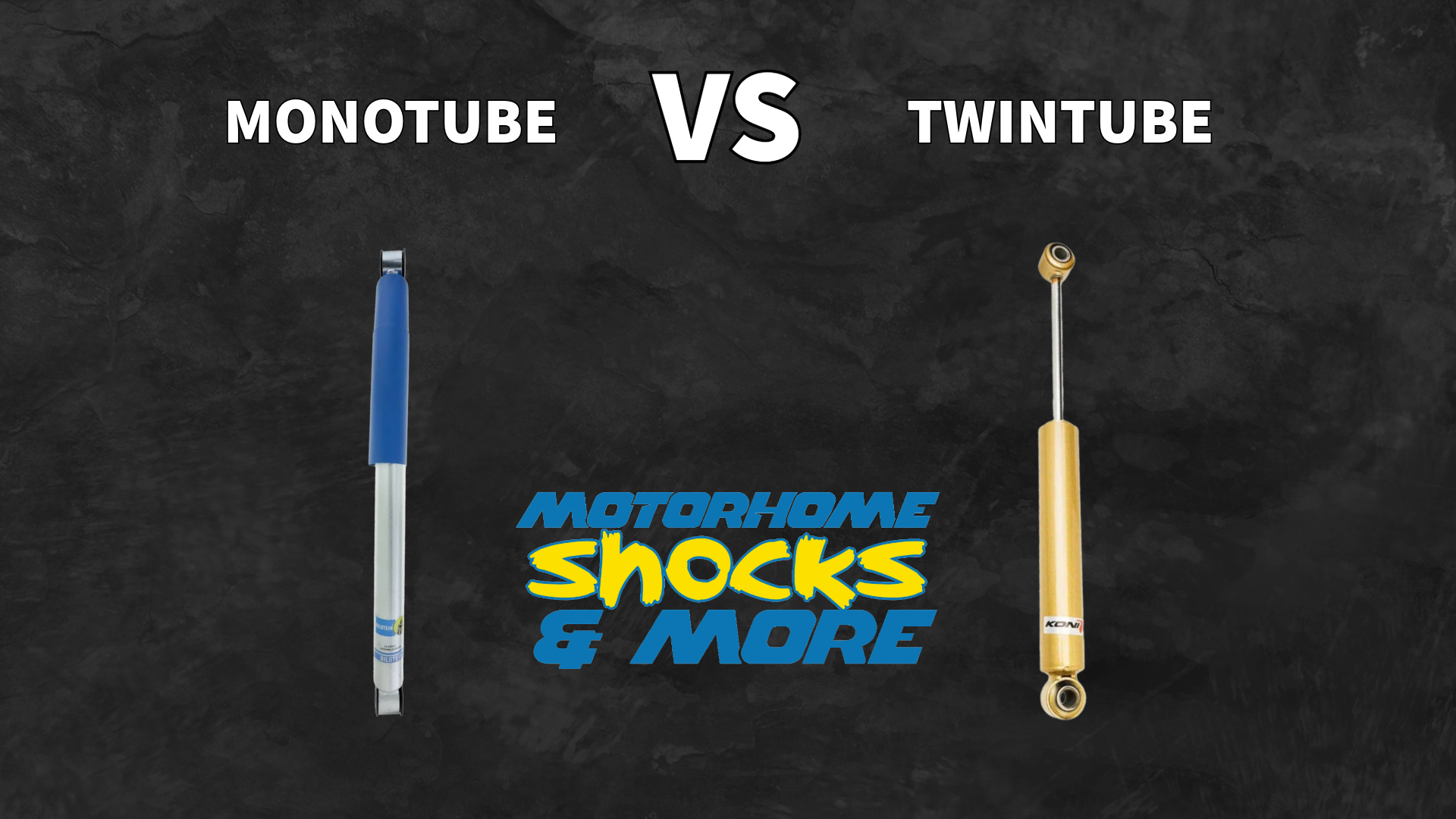

Monotube vs. Twin-Tube RV Shocks: What’s the Difference?

If you’ve been shopping for replacement RV shocks, you’ve probably noticed that the conversation quickly turns to shock construction. One brand uses a monotube design. Another uses a twin-tube design. Then someone tells you a monotube is always better, while someone else says twin-tube shocks always ride softer. That’s where a lot of motorhome owners get stuck.

The reality is more useful than those simple comparisons suggest. Monotube and twin-tube shocks use different internal designs to control suspension motion, but construction alone doesn’t determine whether a shock will feel firm, soft, comfortable, or controlled. Valving, gas pressure, piston size, chassis weight, and application-specific tuning all matter.

That distinction is especially important on a motorhome. A Class A, Class B, or Class C coach carries substantial weight and has a higher center of gravity than a typical passenger vehicle. It may also spend hours traveling over bridge joints, rolling pavement, rough highways, and other surfaces that repeatedly cycle the suspension.

Understanding the differences between monotube and twin-tube RV shocks can help you make a better choice based on ride control, heat management, comfort, and how your motorhome actually behaves on the road. You can also compare chassis-specific options through Motorhome Shocks & More and the RV Performance blog.

The Short Answer: Monotube vs. Twin-Tube RV Shocks

A monotube shock typically uses a single main pressure tube with the working piston inside. A separating piston keeps the hydraulic oil and pressurized gas in separate chambers. A twin-tube shock uses an inner working cylinder surrounded by an outer reserve tube that provides additional space for displaced fluid.

Those construction differences influence how the shock manages heat, fluid movement, gas pressure, and damping forces. However, they don’t automatically dictate ride quality.

In general:

• Monotube shocks are known for efficient heat dissipation, a larger working piston in many applications, and consistent damping during repeated suspension movement.
• Twin-tube shocks use a compact two-cylinder layout, giving manufacturers considerable flexibility in tuning the shock for comfort and control.
• Neither design is automatically better for every motorhome. The correct chassis fitment and shock tuning matter just as much as the tube design.

Monotube vs. Twin-Tube RV Shocks at a Glance

Feature	Monotube Shock	Twin-Tube Shock
Basic Construction	One main working cylinder	Inner working tube plus outer reserve tube
Oil and Gas Separation	Typically separated by a floating piston	Fluid moves between working and reserve chambers
Heat Management	Generally very efficient	Typically less direct than a monotube design
Damping Consistency	Well suited to repeated or sustained suspension movement	Depends heavily on internal design and tuning
Ride Feel	Can be firm or comfort-oriented depending on valuing	Can be soft or highly controlled depending on valving
Common RV Priority	Consistent control and heat management	Application-specific comfort and control
Best Choice	The design and shock tuned correctly for your specific motorhome chassis



The biggest takeaway is that shock architecture helps explain how the shock works, but it shouldn’t be the only factor you use when choosing a replacement.

How Does a Monotube RV Shock Work?

A monotube shock uses one main cylinder containing the working piston, hydraulic oil, and a separate gas chamber. A floating dividing piston separates the oil from the pressurized gas.

As the motorhome’s suspension compresses and rebounds, the piston moves through the oil. Internal valving controls how quickly that oil moves, creating resistance that slows and controls suspension movement.

One important advantage of this design is that the working fluid is positioned directly against the outer shock body. That allows heat generated during repeated damping cycles to transfer efficiently through the shock body.

Monotube construction is commonly associated with:

• Efficient heat dissipation
• Consistent performance during repeated suspension cycles
• Strong resistance to oil aeration and cavitation when properly designed
• A relatively large working piston
• Responsive damping control

Those characteristics can be valuable on a heavy motorhome that spends long periods traveling over uneven pavement. However, a monotube shock doesn't automatically have to feel harsh or extremely firm. Its road feel still depends heavily on the way the manufacturer valves and tunes it for the specific vehicle.

How Does a Twin-Tube RV Shock Work?

A twin-tube shock uses two cylinders. The inner tube contains the working piston, while an outer reserve tube provides additional space for hydraulic fluid displaced as the shock compresses and rebounds.

This design has been used successfully across passenger vehicles, commercial applications, trucks, and motorhomes for decades. It's also extremely flexible because manufacturers can use different valving strategies to produce very different ride characteristics.

Twin-tube construction commonly offers:

• A compact internal layout
• Flexible tuning for different chassis and ride goals
• Predictable damping when properly matched to the application
• Comfort-oriented options for drivers who want to reduce harshness
• Motorhome-specific designs capable of providing substantial body control

It's important not to assume that twin-tube automatically means soft. Modern twin-tube shocks can use sophisticated valving to provide strong control while still responding differently to smaller road inputs.

Why Shock Heat Matters on a Motorhome

Heat is one of the most important reasons that monotube vs. twin-tube RV shocks deserve attention. Every time a shock controls suspension movement, some of that mechanical energy is converted into heat within the shock fluid.

On a normal passenger vehicle, the suspension may have plenty of opportunities to recover between demanding events. A motorhome can place much greater demands on its shocks because of its weight, high center of gravity, travel load, and the amount of suspension movement generated during long highway trips.

Repeated conditions such as these can keep the shocks working:

• Bridge joints and expansion joints
• Rolling or uneven highway pavement
• Repeated dips and road transitions
• Long stretches of deteriorated pavement
• Large weight transfers during braking and acceleration
• Front-to-rear porpoising

Monotube construction generally provides an efficient path for transferring heat away from the shock fluid. That's one reason monotube shocks are frequently used when consistent damping under sustained loads is a priority.

If your motorhome keeps pitching after dips or bridge transitions, read How to Stop RV Porpoising for a closer look at how damping affects that specific problem.

Does a Monotube Shock Always Ride Firmer?

No. This is one of the biggest misconceptions in the monotube vs. twin-tube discussion.

Many popular monotube shocks are tuned to provide strong, responsive control, so owners often associate monotube construction with a firmer ride. However, the tube itself doesn't determine the entire ride experience.

Ride feel is also influenced by:

• Compression valving
• Rebound valving
• Piston size
• Gas pressure
• Motorhome weight and weight distribution
• Spring rate
• Tire construction and pressure
• Suspension geometry
• How the shock was tuned for the specific chassis

That means two monotube shocks can feel very different from each other. The same is true of two twin-tube shocks.

Instead of assuming that a monotube automatically means firm, it's better to ask whether a particular shock is tuned to the level of control and comfort you want from your motorhome.

Does a Twin-Tube Shock Always Ride Softer?

No. Twin-tube construction is often associated with comfort-oriented shocks, but that doesn't mean every twin-tube design is soft or lightly damped.

A good example is KONI's shock lineup for motorhomes. Some KONI RV products use twin-tube construction and specialized damping technology to balance control with ride comfort. That allows the shock to respond differently based on the type and frequency of suspension movement rather than simply being "soft."

If comfort is one of your priorities, browse KONI motorhome shocks and compare the available options for your chassis, rather than selecting a shock based solely on whether it's monotube or twin-tube.

Monotube Strengths for Motorhome Use

Efficient Heat Dissipation

Monotube shocks place the working fluid directly against the outer shock body, allowing heat to transfer efficiently through the cylinder wall. That can help maintain damping consistency when the shock is working repeatedly during a long travel day.

Resistance to Aeration and Cavitation

Many monotube shocks use pressurized gas and a separating piston to keep the gas and hydraulic oil apart. This helps reduce foaming and cavitation that could otherwise affect damping performance.

Consistent Control Under Repeated Loads

A properly matched monotube shock can be a strong choice when a motorhome repeatedly bounces, pitches, or feels slow to recover after road inputs.

Large Working Piston

The single-cylinder layout allows many monotube shocks to use a relatively large piston. A larger piston gives engineers more surface area to control oil flow and tune damping forces.

Good Fit for Control-Focused Applications

Motorhome owners who want a planted, controlled highway feel frequently consider monotube options such as certain Bilstein motorhome shocks. The correct option still depends on chassis fitment and the specific ride complaint.

Twin-Tube Strengths for Motorhome Use

Flexible Ride Tuning

The twin-tube layout gives shock manufacturers considerable flexibility in tuning compression and rebound behavior. That allows manufacturers to design shocks around specific comfort and control goals.

Comfort-Oriented Options

Motorhome owners who are happy with overall body control but dislike sharp road impacts may prefer a shock line that places greater emphasis on ride compliance.

Advanced Valving Can Balance Comfort and Control

Modern twin-tube shocks shouldn't be dismissed as basic comfort shocks. Frequency-selective and other specialized valving systems can change how the shock responds to different suspension inputs.

Proven RV Applications

Twin-tube shocks are used successfully in numerous motorhome applications. What matters most is whether the shock's construction, valving, and application match the chassis and the owner's goals.

Which Symptoms Might Point Toward a Monotube Shock?

A monotube RV shock may deserve a closer look if your motorhome feels:

• Too bouncy after dips or bridge joints
• Slow to settle after large road inputs
• Prone to front-to-rear porpoising
• Floaty or under-controlled at highway speed
• Less composed during repeated rough-road conditions
• In need of stronger, more direct suspension control

These symptoms don't automatically mean that a monotube is the only answer. They indicate that damping control should be a priority when comparing replacement shocks.

When Might a Twin-Tube RV Shock Make Sense?

A twin-tube shock may deserve a closer look when:

• Your motorhome already feels reasonably controlled
• Harshness over smaller impacts is a major complaint
• Comfort is a high priority for passengers
• You want a shock with comfort-focused or frequency-sensitive tuning
• A chassis-specific twin-tube product has been engineered for your application

Again, the goal isn't simply to choose twin-tube because you want comfort. The goal is to find a specific shock whose tuning matches the way you want the coach to behave.

Bilstein vs. KONI and Shock Construction

Many motorhome owners don't begin their search by asking whether they need a monotube or twin-tube shock. They start by asking whether they should buy Bilstein or KONI.

That's a reasonable comparison because the brands take different approaches across their motorhome product lines. Bilstein's B6 4600 products commonly use high-pressure monotube construction, while several KONI RV products use twin-tube construction with application-specific damping technology.

However, brand choice shouldn't be reduced to the number of tubes. Each manufacturer tunes its shocks differently, and the same brand may offer different technologies for different motorhome chassis.

For a deeper comparison, see Bilstein vs. KONI Shocks for Motorhomes. You can also compare the full Bilstein and KONI motorhome shock collections by chassis and application.

Shock Construction Isn't the Only Thing That Matters

When comparing monotube vs. twin-tube RV shocks, don't lose sight of the bigger suspension picture. Even the best shock design can't correct every handling problem.

Neither monotube nor twin-tube shocks will fully correct:

• Incorrect tire pressure for the loaded motorhome
• Poor wheel alignment
• Worn steering or suspension components
• Excessive side-to-side body roll that requires additional sway control
• Tail wag caused by unwanted lateral axle movement
• Rear sag caused by insufficient load support
• An overloaded motorhome or axle

Shocks primarily control suspension compression and rebound. If the coach's biggest complaint is excessive body roll, steering wander, axle movement, or sagging, another suspension component may need attention first or alongside the shocks.

The Best Shocks for a Motorhome: How to Choose guide provides a broader look at shock selection based on chassis, symptoms, travel weight, and driving style.

How to Choose Between Monotube and Twin-Tube RV Shocks

If you're still unsure, don't make the decision based on construction alone. Use a practical process instead.

1. Identify your biggest ride complaint. Decide whether you're trying to reduce bounce, porpoising, harshness, float, or another suspension problem.
2. Confirm your chassis. Motorhome year, make, model, chassis, GVWR, and axle configuration can all affect fitment.
3. Check the existing suspension. Worn bushings, steering components, alignment problems, or incorrect tire pressures can change how the coach feels.
4. Decide whether comfort or additional control is the bigger priority. Don't assume one tube design automatically provides either one.
5. Compare chassis-specific products. Review the actual shock lines available for your motorhome rather than choosing by construction type alone.

Give Monotube Shocks a Closer Look If:

• Your motorhome is heavy and sees long highway travel days
• Bounce and porpoising are major complaints
• You want consistent damping during repeated suspension movement
• You prefer a planted and controlled road feel
• Heat management is an important part of your comparison

Give Twin-Tube Shocks a Closer Look If:

• Ride comfort is a major priority
• Your motorhome already has reasonable body control
• You want to compare comfort-focused or frequency-sensitive damping options
• A proven twin-tube shock is specifically tuned for your chassis

Can Monotube or Twin-Tube Shocks Reduce Driver Fatigue?

They can when poor damping contributes to fatigue. A coach that continues bouncing, rocking, or pitching requires the driver to react to movement for hours at a time. Better-controlled suspension motion can make the motorhome feel calmer and more predictable.

However, driver fatigue can also come from steering wander, crosswind movement, body roll, noise, seating position, and other factors. If the driver is constantly correcting the steering wheel rather than reacting to vertical suspension movement, shocks may be only one part of the solution.

This is another reason a symptom-first approach works better than automatically choosing the most aggressive shock available.

Choose the Shock That Fits Your Motorhome, Not Just the Tube Design

When comparing monotube vs. twin-tube RV shocks, the biggest practical difference is how the two designs package and manage the components responsible for damping. Monotube shocks are well known for efficient heat management and consistent performance during repeated suspension movement. Twin-tube shocks provide a flexible platform that can be tuned for comfort, control, or a combination of the two.

Neither design automatically guarantees a better ride. A well-tuned twin-tube shock can provide excellent motorhome control, and a properly engineered monotube can deliver strong damping without making the ride unnecessarily harsh. The better question is which specific shock is designed for your chassis and addresses the symptoms you're trying to improve.

When you're ready to compare your options, browse motorhome shocks and struts at Motorhome Shocks & More, compare available Bilstein and KONI motorhome shocks, and use your chassis, travel weight, ride symptoms, and comfort priorities to choose the setup that makes the most sense for the way your motorhome actually drives.
